VNC or Virtual Network Computing is a graphical desktop sharing tool that allows you to control a computer (server) remotely from another computer (client). A VNC server transmits all keyboard and mouse events from the client computer to the server computer. If you’re not yet comfortable with the CLI things like terminal etc, you can use VNC to make easier things like managing files, software, and system settings.

In this tutorial, we will guide you step-by-step to set up the VNC server on Ubuntu 16.04. We will install a Linux Desktop XFCE on the server, then install and configure the VNC server using TightVNC.

Prerequisites

  • Ubuntu 16.04
  • Root privileges

What we will do

  1. Update System and Create User
  2. Install XFCE Desktop and TightVNC
  3. Initial VNC Configuration
  4. Configure TightVNC
  5. Running TightVNC as a Service
  6. Connect to the VNC Server Through SSH Tunnel

Step 1 – Update System and Create User

Update your Ubuntu repository, then upgrade your system using the apt commands below.

sudo apt update
sudo apt upgrade

For this guide, the VNC desktop will be available for a non-root user. So, we need to create a new user and add it to the sudo group for root access.

Create a new user named ‘edward’ and give the user a password.

useradd -m -s /bin/bash edward
passwd edward

Now add the ‘edward’ user to the sudo group for the root privileges access.

usermod -a -G sudo edward

A new user named ‘edward’ for VNC access has been created, and the user will be able to access the root privileges.

su – edward
sudo su

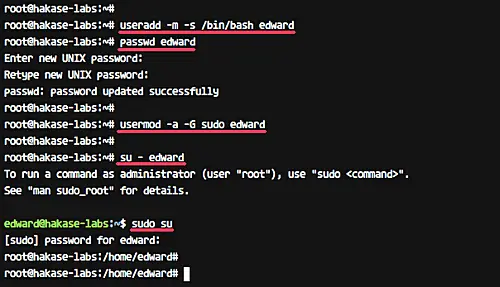

Add a Linux system user for VNC connection

Step 2 – Install XFCE Desktop and TightVNC

Linux has several desktop environments such as Gnome, Unity, KDE, LXDE, XFCE etc. For this tutorial, we will be using the XFCE desktop as our VNC desktop environment.

Install XFCE desktop including all dependencies using the apt command below.

sudo apt install xfce4 xfce4-goodies

If the XFCE desktop installation is complete, install the ‘tightvncserver’ packages.

Run the apt command below.

sudo apt install -y tightvncserver

The XFCE Desktop and tightvncserver have been installed on the Ubuntu 16.04 server.

Step 3 – Initial VNC Configuration

In this step, we will generate the VNC configuration for the ‘edward’ user.

Login as ‘edward’

su – edward

Now initiate the vnc configuration for ‘edward’ user with command below.

vncserver

You will be asked for the VNC server password – type your password. And for the ‘view-only’ password, you can enable or disable it. The user who logins to the server using the ‘view-only’ password will not be able to control the mouse and keyboard.

Start VNC Server

The first time we run the ‘vncserver’ command, it will automatically create new configuration directory ‘.vnc’ and run the first VNC session.

Check it using the command below.

ls -lah ~/.vnc/
ps -ef | grep Xtightvnc

And you will get the result as shown below.

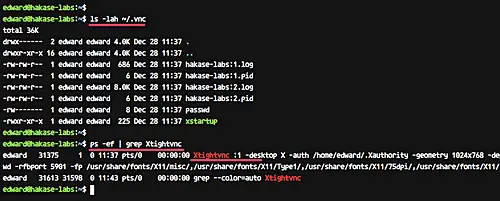

VNC Server is working correctly

Step 4 – Configure TightVNC

In this step, we will configure the VNC server for using the XFCE desktop. We will edit the VNC configuration file ‘xstartup’ under ‘.vnc’ directory.

Before we edit the configuration, kill the first VNC session using the command below.

vncserver -kill :1

Now backup the default configuration and create a new one using vim.

mv ~/.vnc/xstartup ~/.vnc/xstartup.bekup
vim ~/.vnc/xstartup

Paste the following configuration there.

#!/bin/bash
 xrdb $HOME/.Xresources
 startxfce4 &

Save and exit.

Now make the script executable using chmod and run again the ‘vncserver’ command.

chmod +x ~/.vnc/xstartup
vncserver

Check the session list.

ps -ef | grep Xtightvnc

And you will get the result as below.

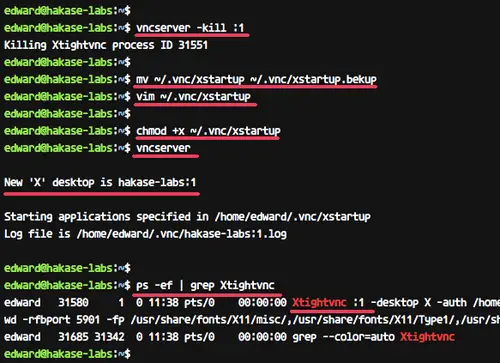

How to check and kill a VNC session

Step 5 – Running TightVNC as a Service

In this tutorial, we will run the VNC server as a service. So we need to create a new service file for it.

Go to the ‘/etc/systemd/system’ directory and create a new service file ‘vncserver@.service’.

cd /etc/systemd/system
vim vncserver@.service

Paste the following vnc service script there.

[Unit]
 Description=Remote desktop service (VNC)
 After=syslog.target network.target

[Service]
  Type=forking
  User=edward
  PIDFile=/home/edward/.vnc/%H:%i.pid
  ExecStartPre=-/usr/bin/vncserver -kill :%i > /dev/null 2>&1
  ExecStart=/usr/bin/vncserver -depth 24 -geometry 1280x800 :%i
  ExecStop=/usr/bin/vncserver -kill :%i

[Install]
  WantedBy=multi-user.target

Save the file and exit the editor.

Now reload the systemd services and start the VNC server service.

systemctl daemon-reload
systemctl start vncserver@1.service

Assuming everything goes error-free, add the service to the boot time and check the service status using systemctl.

systemctl enable vncserver@1.service
systemctl status vncserver@1.service

Following are the results in our case:

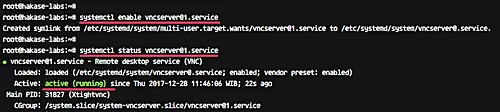

VNC as a service

The VNC server is installed, and the first session is now running under ‘edward’ user.

Step 6 – Connect to the VNC Server Through SSH Tunnel

In this step, we will connect to our VNC server through an ssh tunnel.

Open your terminal and type the ssh command as below.

ssh -L 5901:127.0.0.1:5901 -N -f -l edward 192.168.33.10

Type your SSH login password.

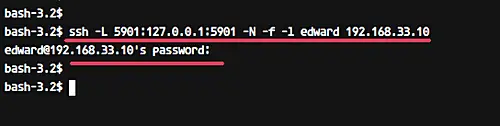

Connect to VNC trogh SSH tunnel

The command will create the tunnel between your localhost and the VNC server. The port 5901 on localhost will be forwarded to the VNC server ‘192.168.33.10’ on port 5901.

Now open your ‘vnc viewer’ application, create a new connection, and type the VNC server address with the 127.0.0.1 localhost IP and port 5901 as below.

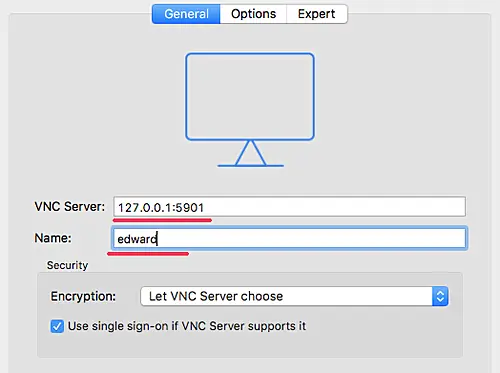

VNC Viewer

Connect to the VNC server and you will be asked for the VNC server password. Type your password and click ‘OK’.

Connect to VNC server

Now you will get the XFCE desktop from your server.

Click the ‘use default config’ button for the first time, and you will get the XFCE desktop with default configuration.

VNC connection to server desktop

Installation of the VNC server using TightVNC on Ubuntu 16.04 has been completed successfully.
